Typical cross-sections


Materials
To be continued >
Introduction

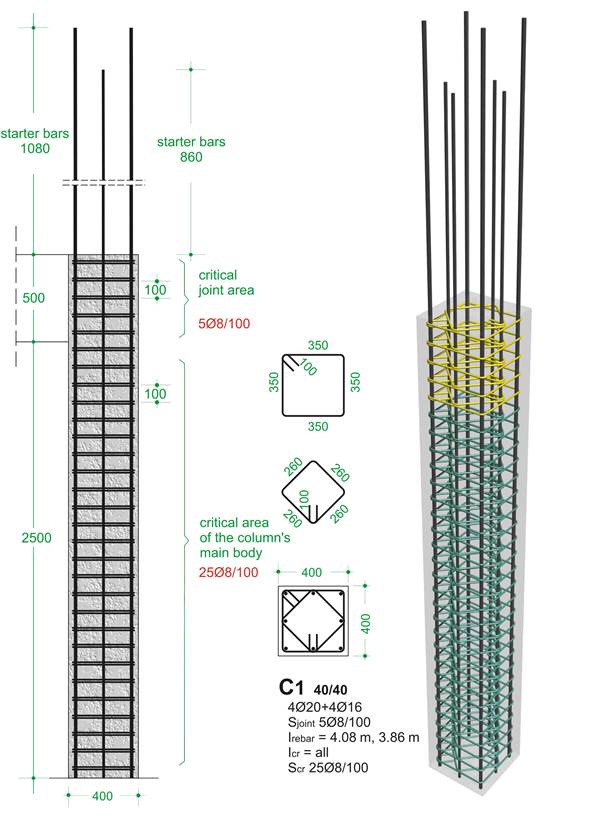

Column with 400x400 mm cross section

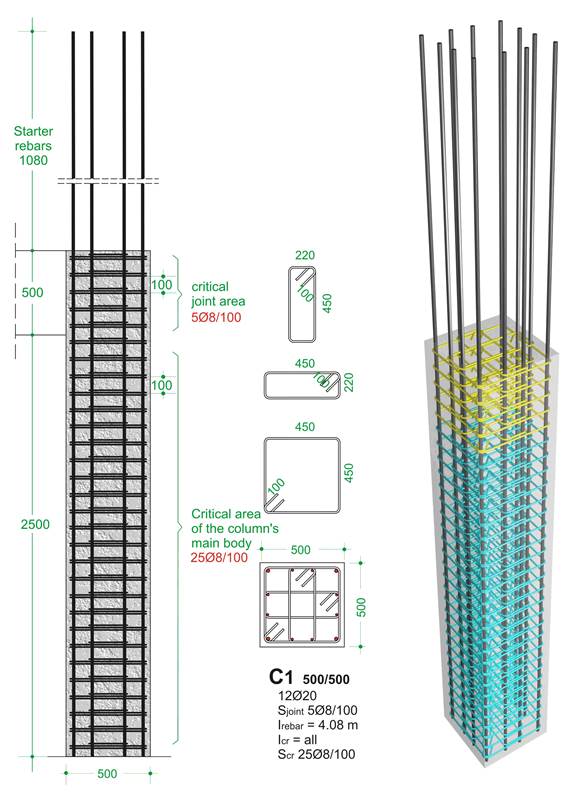

Column with 500x500 mm cross section

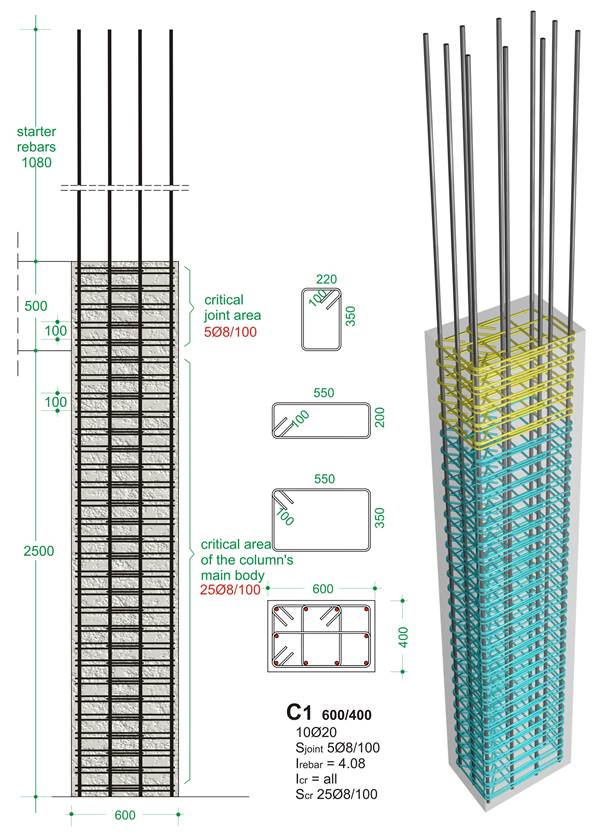

Column with 600x400 mm cross section

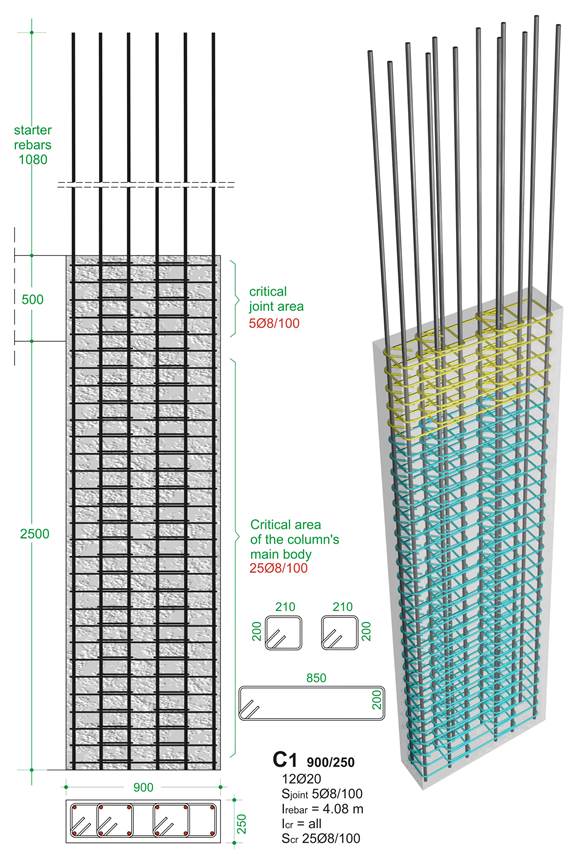

Column with 900x250 mm cross section

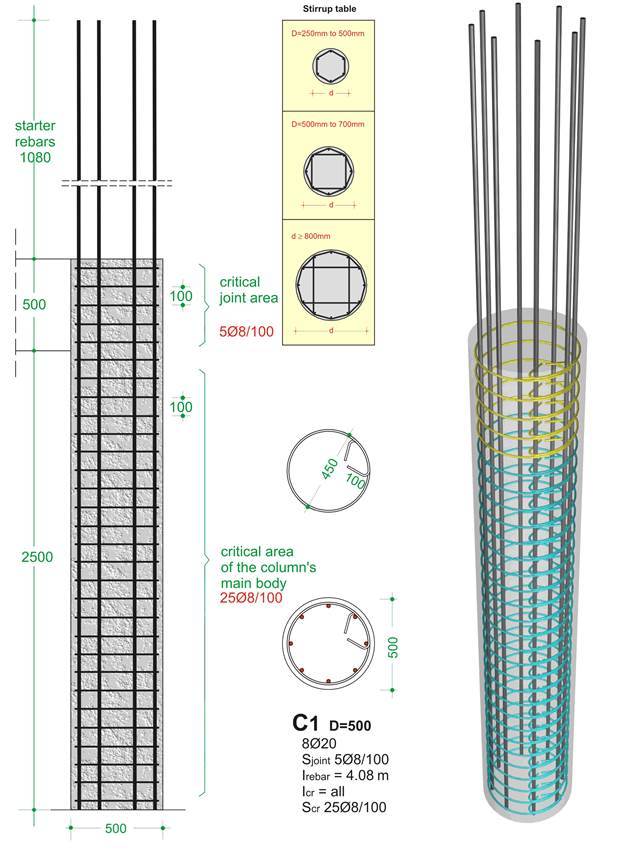

Column with a D=500 mm circular cross section

Column with a D=500 mm circular cross section

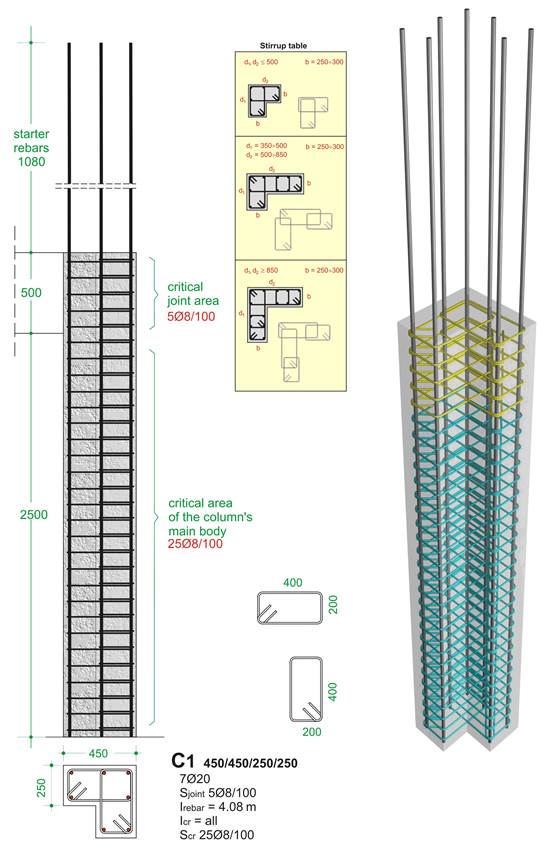

Column with ‘L’ cross section 450x450x250x250 mm

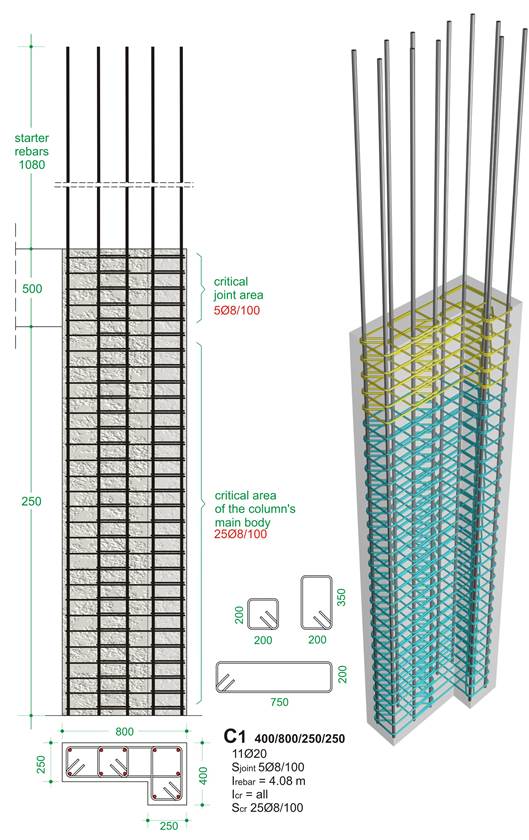

Column with ‘L’ cross section 400x800x250x250 mm

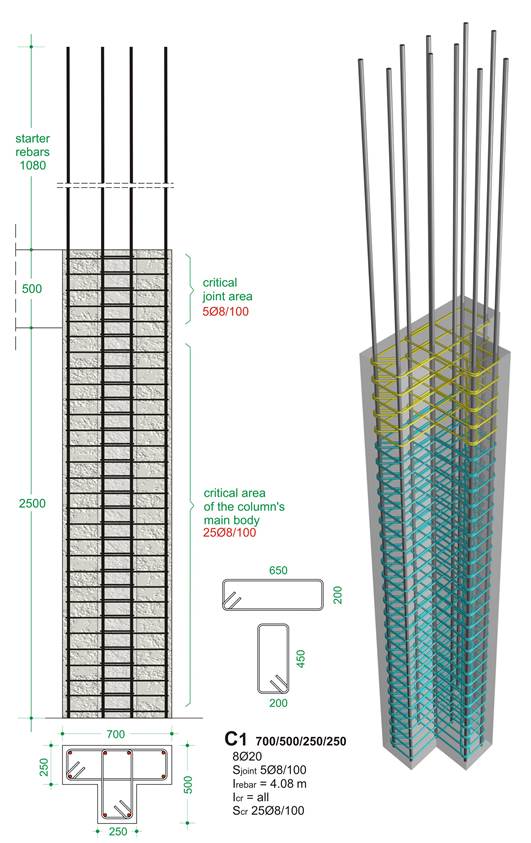

Column with ‘T’ cross section 700x500x250x250 mm

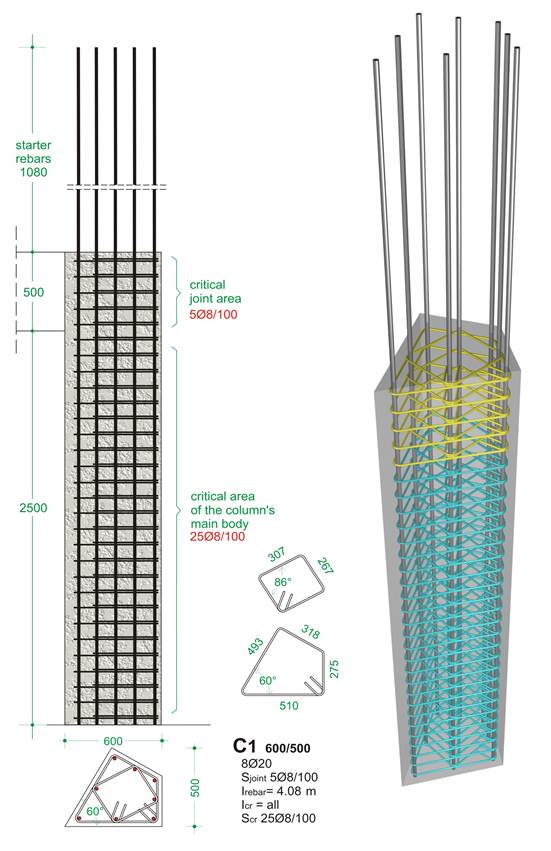

Column with quadrilateral cross section 600x500 mm

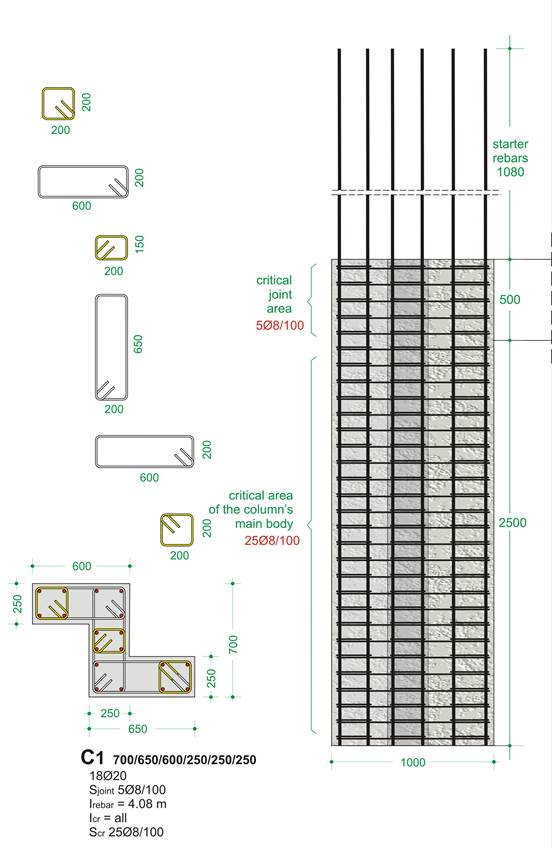

Column with ‘Z’ cross section 700x650x600x250x250x250 mm

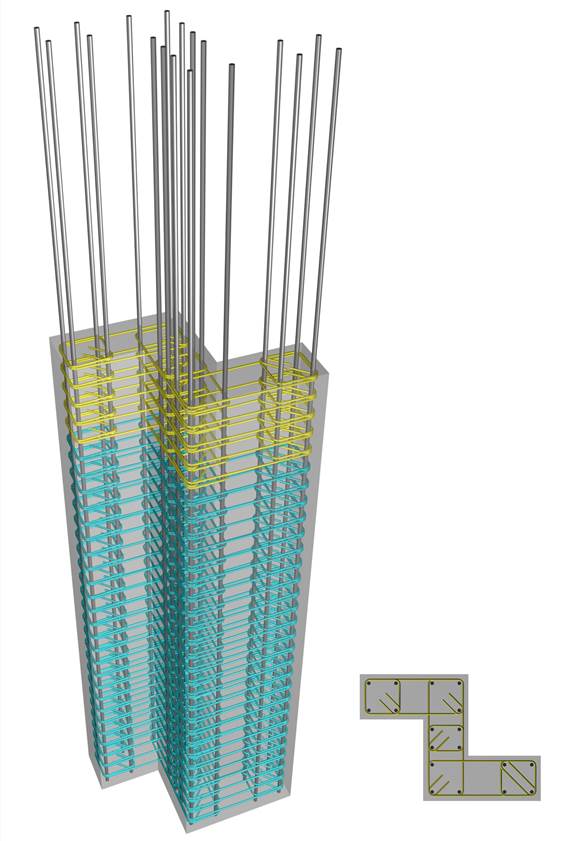

Column with ‘Z’ cross section 700x650x600x250x250x250 mm

Rebar in the internal corner of composite sections

Placing a rebar in the internal corner of composite sections (‘Γ’, ‘Ζ’ section etc) is optional because:

a) it does not significantly enhance the flexural strength since it is not placed in a section’s corner (tensile stresses appear at the external corners of the elements’ sections)

b) it does not increase the confinement because in case of an intense earthquake, where concrete spalling would occur, that rebar might buckle since it is not fully restrained.

c) in any case however, this corner rebar is useful from a construction point although it is not participating to the section’s confinement.
